300×300mm Fiber Laser Cutting Machine for Small Metal Parts
If your job is jewelry blanks, metal tags, brackets, samples or small custom parts, a big sheet metal cutter is usually more than you need — it takes up space, costs more, and for parts only a few centimeters wide, it's just not practical.
This 300×300mm enclosed fiber laser cutter is built for the small metal work many shops handle every day. It takes less floor space, is easier to place in a small workshop, and is practical for sample cutting and small-batch production.
Send us your drawing and material thickness. We'll test cut it first, so you see the result before you order.
- 300×300mm tablepractical for small metal parts
- 1500W / 2000W / 3000Wpower options
- 5 metalsstainless, carbon steel, brass, aluminum, copper
- Raytools headenclosed cabinet + water chiller included
- Free sample cutbefore you order
Is This the Right Machine for You?
This machine is a good match for some jobs, but not every metal cutting job. Instead of listing more specifications, here's a straight way to check whether it fits what you do.
Likely a good fit if you're making
- Pendants, charms, nameplates and small jewelry designs
- Metal tags, ID plates and machine labels
- Washers, brackets and small precision hardware
- Thin metal housings for electronic components
- Samples or small-batch runs before scaling up production
Probably not the right machine if
- You mainly cut large sheet metal — you will outgrow a 300×300mm table quickly
- Thick steel plate is your primary job — this machine is built for finer, smaller work
- Your parts are regularly larger than 300×300mm
- You only need marking — logos, serial numbers or QR codes — not cutting
If marking is your main task, a cutting machine is more than you need. Tell us what material you want to mark and what effect you need, and we will point you to a fiber laser marking machine instead — usually the more cost-effective choice.
See It Cut Before You Decide
Specifications only tell part of the story. For small metal parts, the real question is simple: how does the finished piece look after cutting?
Check the edges, holes and corners in the samples below. If you don't see your material here, send us your drawing and thickness — we'll test cut it and show you the result before you order.
Cutting Samples
Cutting Videos
Match Your Job to the Right Setup
Different shops use this machine for different jobs, and the right power comes down to your material, thickness, detail and how many parts you run a day.
Jewelry & Precious Metal
Pendants, charms, small custom pieces in gold, silver or brass. This is fine, detailed work — we usually suggest a sample cut first, especially on precious metal you don't want to waste.
Precision Hardware & Tags
Washers, brackets, ID plates, machine labels. When you're cutting the same stainless or carbon steel part over and over, a clean edge every time is what counts.
Electronics & Small Components
Thin aluminum and copper housings and parts. A clean cut here means less filing and rework once the part moves down the line.
Gifts, Crafts & Custom Designs
Decorative panels, signage, one-off pieces. If you're always switching designs and running short batches, this machine keeps up without a long setup each time.
Which power should you choose?
A quick guide to start with — the final call is easiest to make from a sample cut.
Our lightest option, and enough for most thin-metal work. Fine for jewelry pieces, tags, and thin stainless, brass or aluminum when speed isn't your main concern.
The one most batch shops end up choosing. Noticeably faster than 1500W on the same parts, which adds up once you're cutting in quantity.
For thicker parts, faster daily production, or reflective metals like brass, copper, gold and silver. The extra power gives more cutting margin, especially when the material or design is more demanding.
Not sure which to pick?
If you mostly cut thin metal and want to keep the budget down, 1500W will do the job. Planning to run daily production? 2000W is the safer middle ground. And if brass, copper, silver, gold or thicker parts are part of your work — or you just want room to grow — 3000W is the one that won't hold you back later.
Or skip the guessing: send us your material, thickness and drawing, and we'll test cut it and tell you which power fits.
What's Inside the Machine
On parts this small, machine quality shows up fast — one edge slightly off and the piece is scrap. So the power rating isn't the whole story; here's what's inside that keeps the cut clean.
Raytools BM110 cutting head
A stable cutting head helps keep cutting smooth, especially on small holes, sharp corners and thin sheets — where a small part shows every flaw.
Raytools XC3000 control
Loads your DXF, AI or PLT file and saves the settings with it. When the same job comes back, the operator isn't starting over.

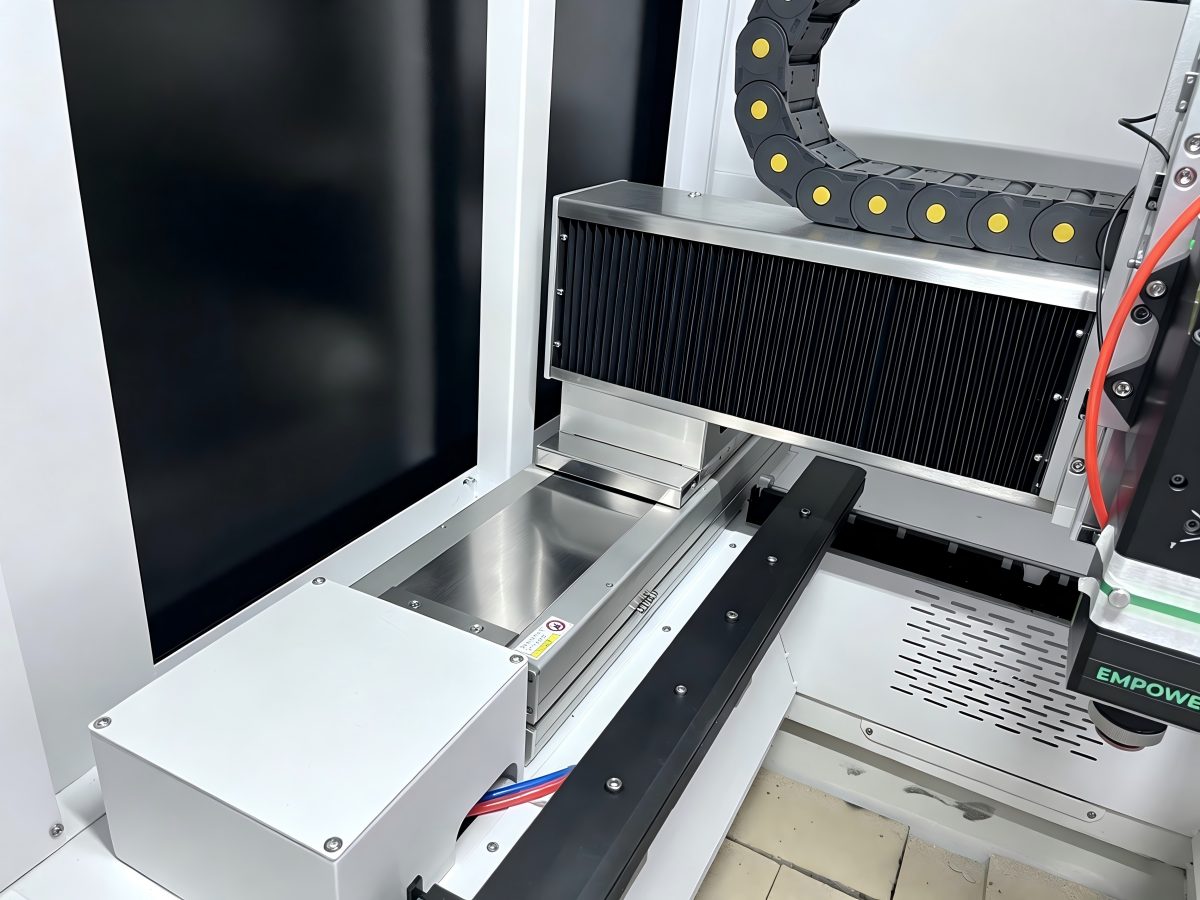

High-precision motion system
Fine contours and small holes leave no room for a wandering axis — if the movement isn't tight, you see it in the part. Built for accurate, repeatable small-part work.
Industrial water chiller
Keeps the laser source at a steady working temperature through longer jobs, which helps the machine run more steadily during batch production.
Enclosed cabinet
A closed body helps contain sparks, smoke and dust better than an open bed — a practical design if the machine sits in your workshop, not a separate room.
Optional smoke purifier
Cutting stainless or brass indoors every day? Adding this helps reduce cutting smoke and keeps the work area more comfortable.
Technical Specifications
| Machine type | Fiber laser cutting machine |
| Working area | 300 × 300 mm |
| Laser power | 1500W / 2000W / 3000W optional |
| Cutting head | Raytools BM110 |
| Control system | Raytools XC3000 |
| Motion system | High-precision transmission system |
| Supported files | DXF / AI / PLT |
| Cooling system | Industrial water chiller |
| Assist gas | Nitrogen / oxygen / compressed air |
| Supported materials | Stainless steel, carbon steel, brass, aluminum, copper |
| Power supply | 220V / 380V, confirmed before production |
| Precious metal cutting | Gold / silver — sample test recommended |
| Optional accessory | Industrial smoke purifier |
Final specs depend on your material, thickness and production needs — we'll confirm them with you.
Still weighing 1500W, 2000W or 3000W? Send your material, thickness and drawing, and we'll test cut it and recommend the setup. Send on WhatsApp →
Send a Drawing, Get a Test Cut
The surest way to know this machine fits your part is to see it cut. Here's how that works — and what to send.
How it works
Send your drawing
Material, thickness, part size and a DXF or AI file. We check the design suits laser cutting first.
We test cut it
Your design, on the real machine.
You get video + photos
See the cut, the edge and the holes.
We match the power
1500W, 2000W or 3000W, based on the result.
You get a price
EXW price, accessories, lead time and shipping.
What to send us
- Material and thickness
- Drawing (DXF, AI, PDF or photo)
- Part size and quantity
- Edge quality needed
- Delivery port or address
- Voltage (220V or 380V)
- Certification or language, if any
Quick questions before you send
Yes, one of the most common materials here. The thickness it handles depends on laser power, material grade, assist gas and the edge quality you need — tell us your specs and we'll advise.
All three can be tested. They're reflective metals, so we usually cut a sample first. If you run them often or need more cutting ability, 3000W is usually the better choice.
For jewelry, tags, samples and small parts, yes. Bigger parts? Tell us — we make larger models too.
Thin metal and light volume, 1500W. Steady batches, 2000W. Thicker or reflective metal, 3000W. Full breakdown in the power guide above.
DXF, AI and PLT for cutting. PDF or a photo works for a quick check.
No — standard CNC-style control, and we set you up with a video, manual and online help.
See it cut your part first.
Send a drawing — we'll check the design, cut it, and send the result back before you decide anything.
