2000×3000mm Large-Format Mirror Laser Sandblasting Machine
Oversized sheets, dust-free finish, easy to ship.
Sandblast oversized mirrors and architectural glass panels in one pass on a steel-tube welded platform built to stay flat under load. Suction holes pull dust straight off the table, and the removable crossbeam lets this large machine fit a standard container.
A closer look at the 2000×3000mm large-format mirror laser sandblasting machine
The heavy steel-tube welded bed, the laser head, and the suction-hole dust extraction system — see the large-format machine up close and running on a real production floor.
From a blank sheet to a finished surface
See the kind of sandblasting patterns and finishes the laser produces — then find where it fits your line.
Where it fits your production
Smart & interactive mirrors
Add sandblasting patterns and custom designs without films or coatings.
Bathroom & decorative mirrors
Clean, uniform sandblasting for consumer and hospitality products.
Architectural glass
Decorative effects for windows, partitions, and building facades.
Curtain wall panels
Large-format processing for exterior glass and curtain walls.
Home decor & furniture glass
Custom finishes for decorative furniture and interior panels.
Art & exhibition glass
Detailed, precise designs for art glass and display panels.
The engineering behind a clean, repeatable glass finish
A contactless laser process replaces sand and grit — driven by a programmable control system and a perforated suction-hole worktable.
Contactless laser sandblasting
Instead of blasting abrasive at the glass, a focused laser beam etches the surface directly — no media, no contact, no wear on the sheet.
- No consumables. No sand, grit, or abrasives to buy or restock — a one-time investment.
- Permanent finish. Laser-sanded surfaces resist wear and won't fade, chip, or peel like frosted paint.

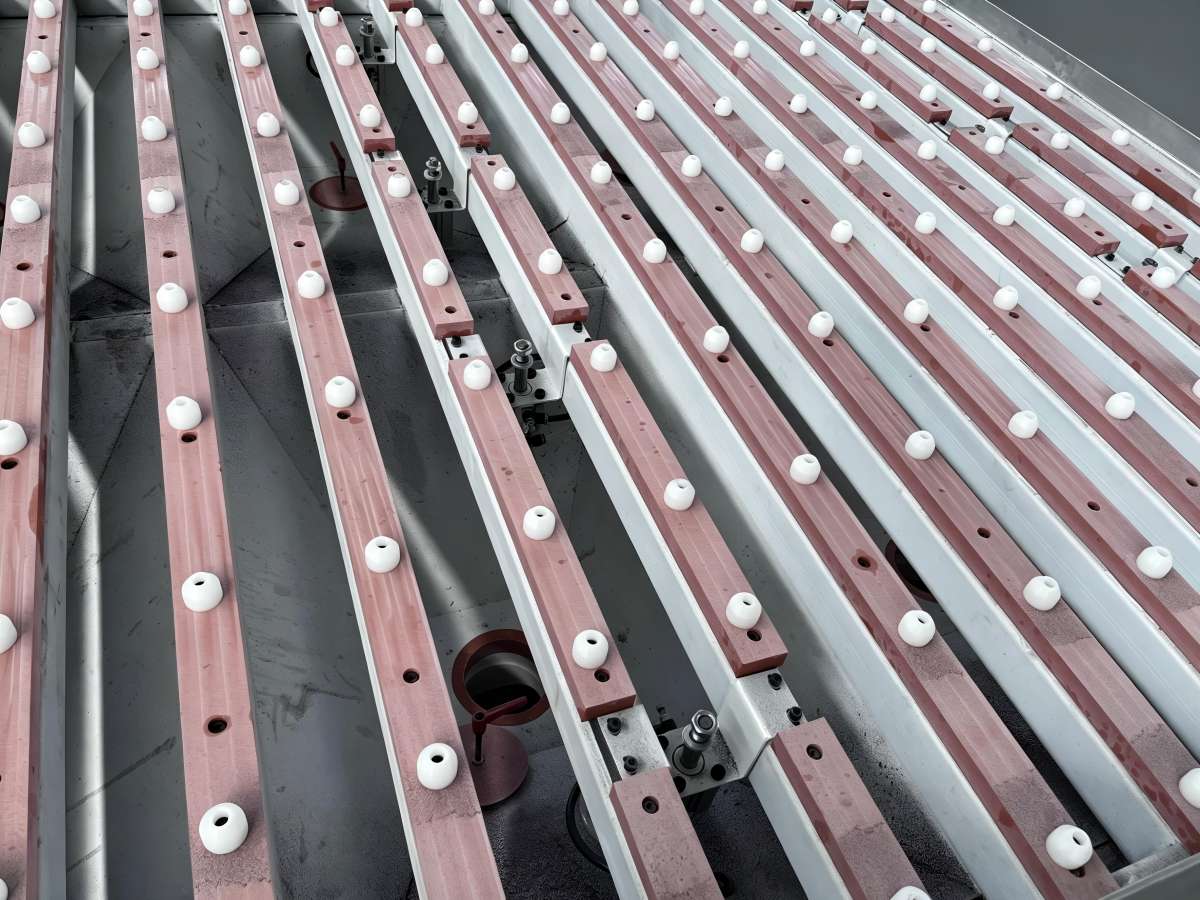

Programmable control & suction-hole table
A Syntec control system drives the laser path while the perforated worktable pulls dust straight off the surface through its suction holes — turning a manual, dusty job into a clean automated line.
- Repeatable precision. Programmable path control reproduces the same fine pattern across every sheet.
- Dust-free & safe. Suction holes across the table keep the work area clean and protect operators — no protective gear required.

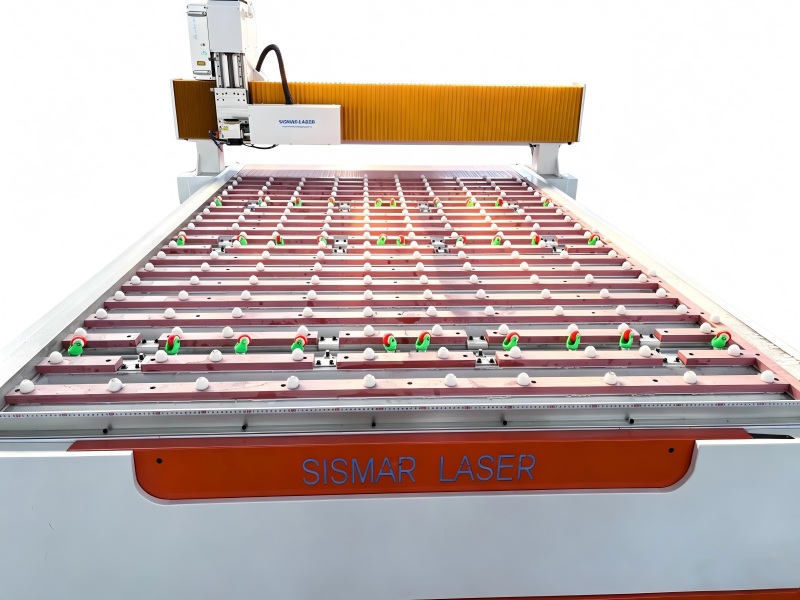

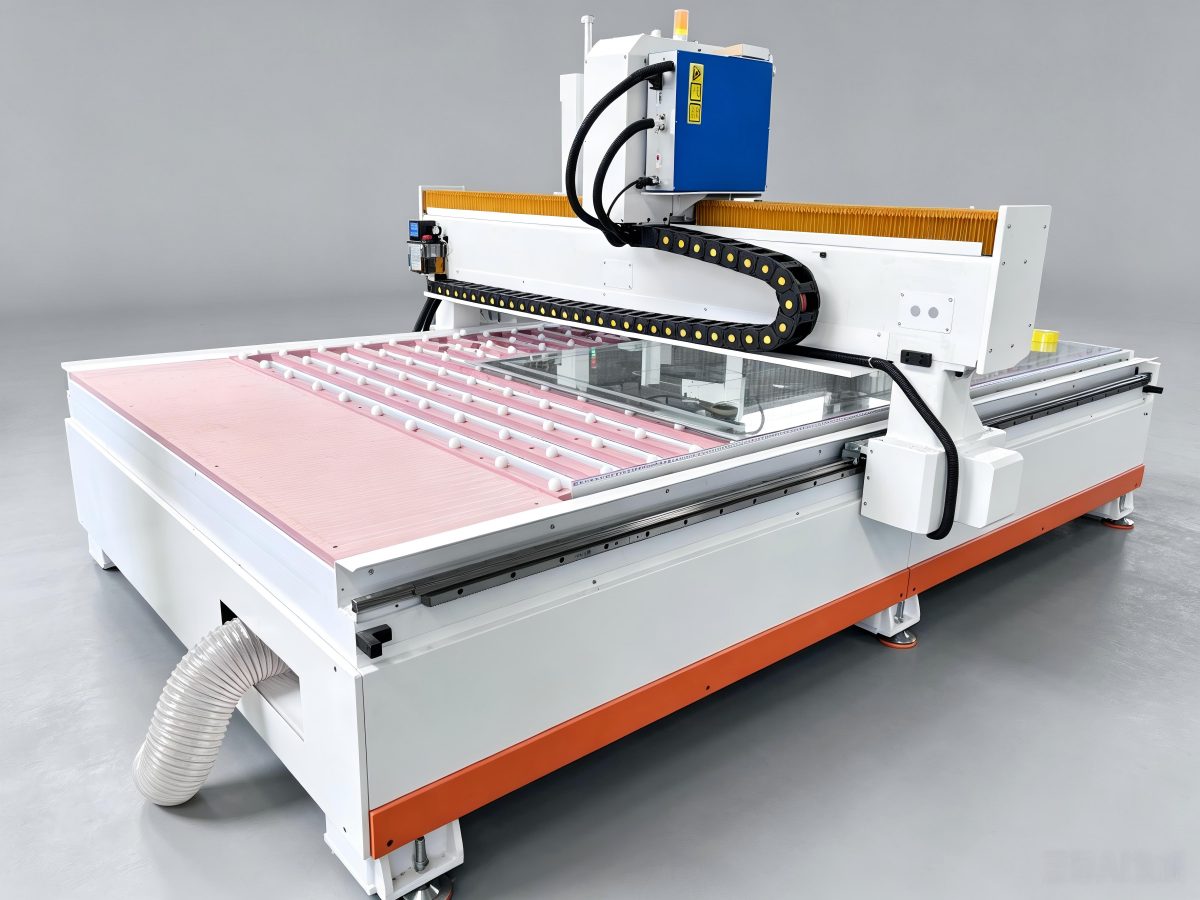

Steel-welded bed & removable crossbeam
For this large-format size, the bed is welded from heavy steel tube and the crossbeam is designed to detach — so the machine ships safely and installs easily, even at oversized dimensions.
- Rigid & anti-deformation. The steel-tube welded platform stays flat and stable under the larger working area — no warping over time.
- Removable crossbeam for export. The crossbeam detaches for shipping, so this large machine fits standard containers and is simple for technicians to reassemble on site.
Why choose laser sandblasting for mirror & glass
How it compares to traditional methods, what stands behind the purchase, and how to size the right configuration.
Traditional sandblasting means buying abrasives over and over, dust across the shop floor, and finishes that still need rework. Here's how laser compares.
| Laser sandblasting | Traditional sandblasting / frosted paint | |
|---|---|---|
| Sheet size | Up to 2000×3000mm oversized sheets | Limited by manual handling |
| Consumables | None — one-time investment | Ongoing cost for abrasives, sand, grit |
| Cleanliness | Dust-free, suction-hole table | Heavy dust, extra cleanup, protective gear |
| Precision | Fine patterns, repeatable | Inconsistent, hard to control |
| Durability | Permanent, resists wear | Painted finish fades, chips, peels |
| Efficiency | Automated, faster throughput | Manual, slower, labor-intensive |
| Versatility | Works across glass & mirror types | Results vary by material |
What stands behind it
Proven installations
A mirror producer runs this exact large-format 2000×3000mm machine to process oversized mirrors — shipped with a removable crossbeam and installed on site.
A smart-mirror processor runs two 1300×2500mm machines for mirror production.
A smart-mirror manufacturer chose the 1300×2500mm configuration for its production line.
Warranty & trade terms
2-year warranty
A 2-year standard warranty covering the laser source, motion system, and controller — with ongoing technical support after that.
Flexible trade terms
EXW, FOB, or CIF — choose the shipping arrangement that works best for your import process.
Choose your configuration
The full-size configuration for processing standard large mirrors and architectural panels in a single pass.
- Full-size working area
- Orion / GZ 120W
- Fits standard container
The large-format configuration for oversized mirrors and panels, on a heavy steel-tube welded bed built for maximum rigidity.
- Largest working area
- Steel-tube welded platform
- Removable crossbeam for shipping
- Orion / GZ 120W
Need a different bed size or laser power? We offer custom configurations for high-volume and OEM buyers.
- Tailored working area
- Higher-power laser options
- Private-label / OEM
Technical specifications
| Working area | 2000 × 3000 mm (79 × 118 in) |
| Machine body size | 2800 × 4500 × 2300 mm (110 × 177 × 91 in) |
| Working platform | Steel-tube welded — rigid & anti-deformation |
| Machine weight | 2800 kg (≈6170 lbs) |
| Functions | Sand blasting · Paint removal · Drilling · Slot cutting (4-in-1) |
| Laser options | Orion 120W / GZ 120W |
| Control system | Syntec system (programmable path control) |
| Intelligent functions | Smart control + suction-hole dust extraction table |
| Applicable material | Smart mirrors, bathroom mirrors, decorative glass, architectural panels |
| Surface finish | Uniform, high-quality sandblasting |
| Max. processing speed | Up to 5000 mm/s (≈197 in/s) |
| Transport & installation | Removable crossbeam — ships in a standard container, easy on-site assembly |
| Power supply | Single-phase 220V / 110V, 50/60Hz |
What happens after you order
Buying a machine is a long-term commitment. Here's how we support it — and how to get a tailored quote.
Worldwide shipping
The removable crossbeam lets this large-format machine ship EXW, FOB, or CIF in a standard container — typically dispatched in 25–30 days.
Remote install support
Video-guided setup, crossbeam reassembly, and operation support — with a response within 24 hours.
Spare parts in stock
Laser source and optics kept in stock, shipped within 48 hours of request.
OEM / ODM private label
Custom branding and private-label production for distributors.
Ready to upgrade your glass processing?
Tell us your sheet size and production volume — we'll recommend the right configuration and send a tailored quote.
