Large Format Glass Laser Inner Engraving Machine

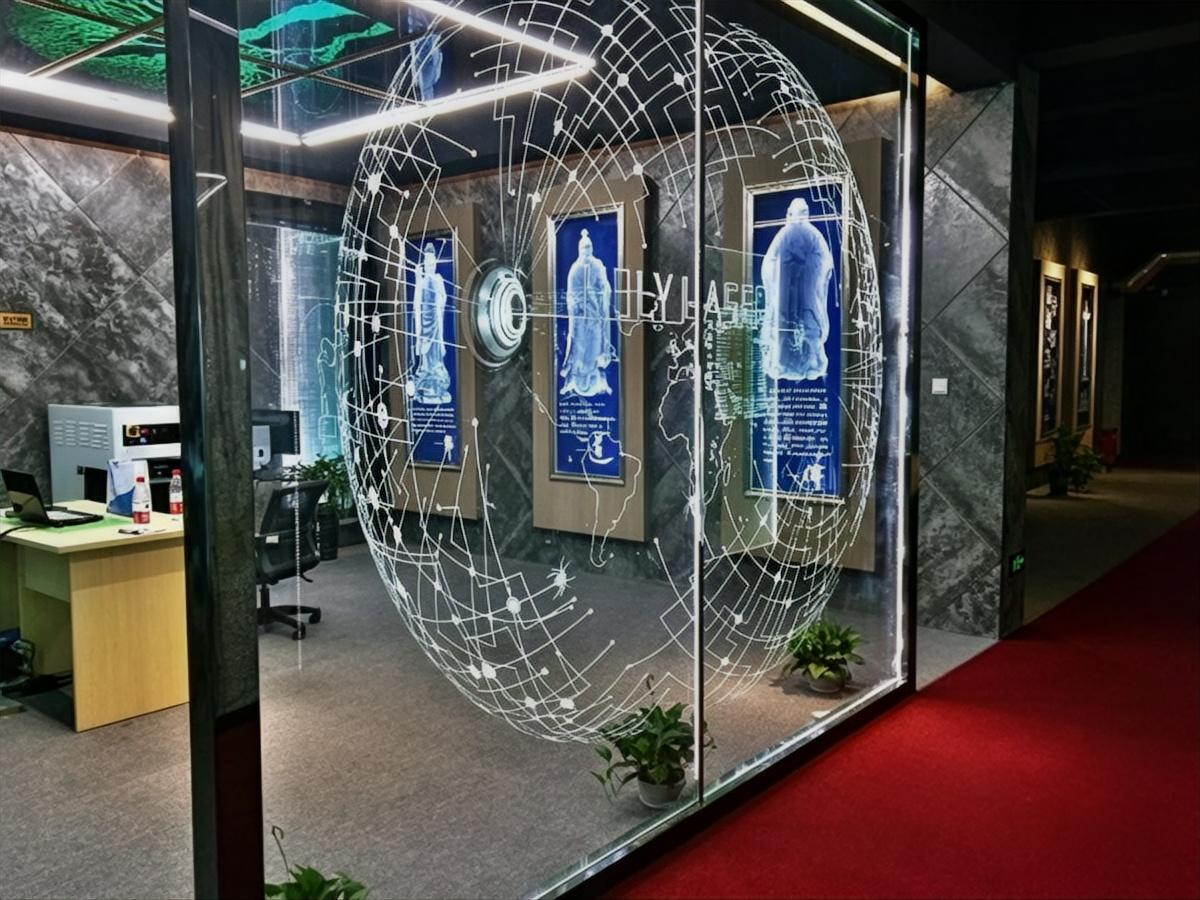

Engrave 2D and 3D designs inside large flat glass — doors, partitions, shower panels, and architectural features — without touching or marking the surface. Built for full-size panels, not desktop souvenirs.
Photographed at our factory in Jinan. Tap to watch it run.

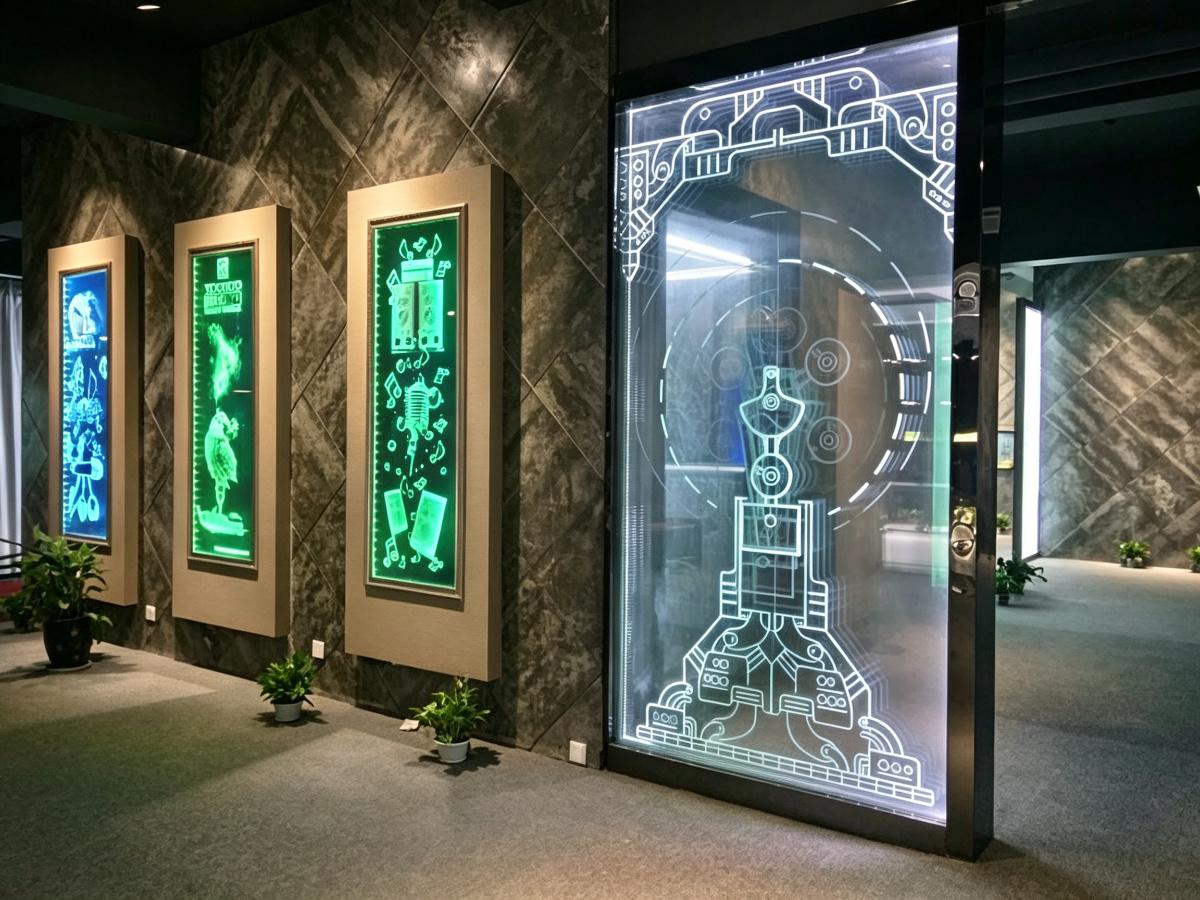

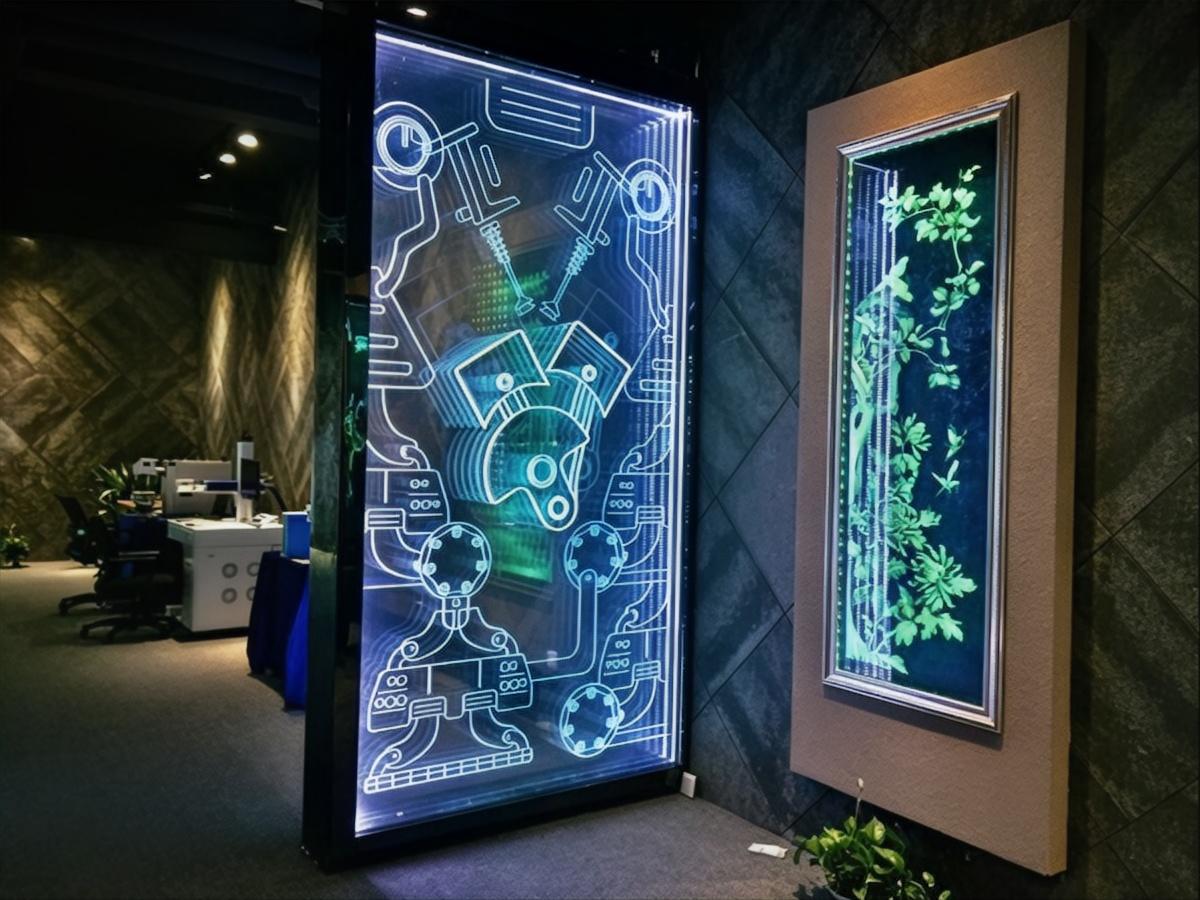

Large glass, engraved from the inside
2D and 3D designs held inside the glass itself — visible from both sides, protected from wear, with nothing raised on the surface.
Built for panels desktop machines can't touch
Is your glass right for inner engraving?
A quick check before you enquire — it tells us straight away whether your project is a fit, and saves you a wasted quote.
Works well
- Flat, non-tempered glass
- Standard float glass
- Green-tinted and low-iron glass
- K9 crystal glass
- Clear glass without bubbles or internal defects
Tell us first
- Tempered glass
- Laminated or coated glass
- Curved glass
- Unusually thick glass
- Glass with internal bubbles or impurities
About tempered glass: inner engraving is normally carried out on non-tempered glass — the internal stress in tempered glass can react to subsurface engraving. Tempered, laminated, coated, or curved glass should not be treated as a standard application. Send us the glass size, thickness, material, and requirements, and our technical team will evaluate the project before recommending a configuration.
How the machine covers a full panel
A single galvo scan field is small. Covering a 4-metre panel is a combination of gantry movement, galvo scanning, and software that stitches the sections together.
Engraved below the surface
The 532nm green beam passes through the outer face of the glass and releases its energy at the focal point inside, forming fine points that build the image. The surface stays smooth — nothing is cut, etched, or raised on the outside, so there's no polishing afterward and nothing to wear away.
Gantry, galvo, and stitching together
The gantry carries the head across the panel; the galvo does the fast local scanning; the software divides the design into sections and stitches them seamlessly. That combination is what lets one design span a full-size panel instead of a small fixed field.
Prepare the design
Import or lay out your design in the software. DXF, OBJ, JPG, and BMP are supported.
Set glass size & position
Enter the panel size and place it on the table. The layout is mapped to the glass.
Preview & divide
Preview the layout and let the software divide it into sections for the panel.
Engrave section by section
The machine engraves each section and stitches them into one continuous design.
From a design file to a finished panel
The 2023 large-format software is what makes big panels practical — laying out the design, dividing it into sections, and driving the engraving.
Full specifications
| Laser type | 532 nm DPSS green laser |
| Laser power | 3 W |
| Laser feature | 5.5K high-frequency ultrafast |
| Cooling | TEC air cooling, ≥24 h continuous |
| Laser lifetime | 25,000 hours |
| Continuous operation | 24/7 capable |
| Max engraving range | 2000 × 4000 × 100 mm |
| Platform | Gantry + air-flotation, integrated |
| Motion system | Gantry XYZ + galvo scanning, 5-axis linkage |
| Repeat positioning | ±0.03 mm |
| Engraving modes | Backside, 180°, 360° |
| Glass types | White, green, float, low-iron, K9 (non-tempered) |
| Input files | DXF, OBJ, JPG, BMP (+ STL via converter) |
| Power supply | AC 220 V, 50–60 Hz |
| Power — machine | 2 kW |
| Power — ventilation | 2 × 5 kW |
| Software languages | Chinese / English |
| Warranty | 1 year + long-term remote support |
Large panels here — smaller crystal work elsewhere
This machine is for you if…
- You work with large flat glass — architectural, interior, or art
- Your projects need full-size panels, not small blocks
- You produce custom patterns, logos, text, or 3D designs in glass
- You run project-based or mid-volume orders
- Your glass is larger than a desktop inner-engraving machine can take
Consider another model if…
- You mainly make crystal gifts, awards, and photo blocks. See the industrial crystal model →
- You engrave crystal balls. See the crystal ball model →
- You need small, portable, or on-site engraving. See the portable Mini Series →
- Your glass is tempered and can't be re-sourced as non-tempered
From project review to production
A factory behind the machine — not a reseller. For equipment this size, that's what keeps a project moving.
Send us your glass size and design
Tell us about your project and we'll confirm what's possible, recommend a configuration, and prepare a technical proposal.
Common questions
Inner engraving is done on non-tempered glass. The internal stress in tempered glass can react to subsurface engraving, so tempered glass needs to be technically assessed first. Send us your glass details and we'll confirm what's possible before you order.
The maximum engraving range is 2000 × 4000 × 100 mm. Tell us your panel dimensions and we'll confirm they're within range for your project.
White glass, green glass, float / common glass, low-iron architectural glass, and K9 crystal glass — all non-tempered. Flat, clear, bubble-free glass gives the cleanest result.
Yes. It engraves 2D images and full 3D designs inside the glass, with backside, 180°, and 360° engraving modes. The software handles large 3D models through point-cloud editing.
The platform uses air flotation — the glass floats on a cushion of air, so a full-size panel can be moved into position without scratching the surface.
Yes. We provide setup guidance, operation and software training, manuals, and video support, with remote technical help afterward. On-site installation and technician support are available for factory clients.
